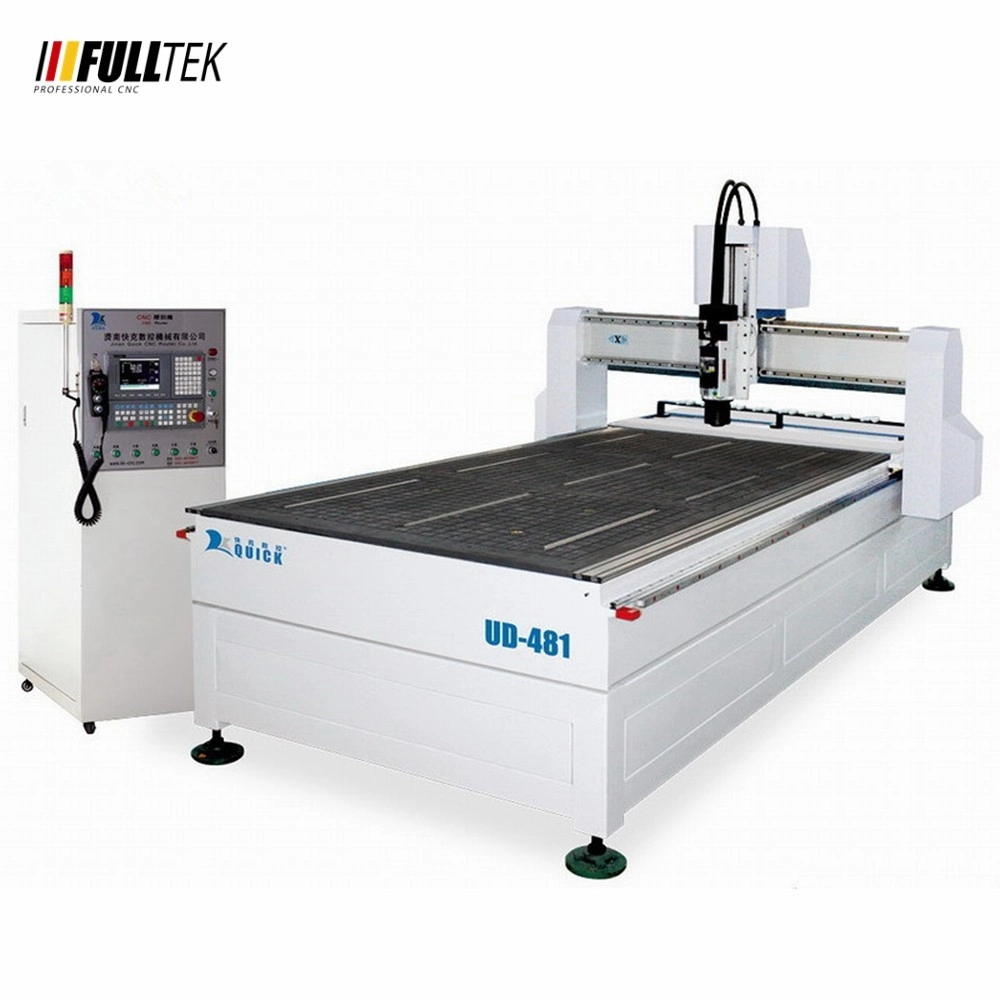

For the standard plate, our UD481 2040 CNC router can be described as the top configuration. The Italian HSD spindle is equipped with the Japanese Yaskawa servo motor to greatly improve the machining accuracy and processing speed. For the mass production of solid wood furniture and harder materials, UD481 2040 CNC router is a powerful assistant.
| Machine specification: | |||||
| X-Y-Z axis working area | 2,070 x 4,000 x200mm | ||||
| Machine size | 2,200 x 4,800x2200mm | ||||
| Repositioning resolution | 0.02mm | ||||
| X-Y movement | rack and pinion, gear drive | ||||
| Z movement | ball screw drive/Taiwan | ||||
| Guide | Linear ¢20 square/Taiwan | ||||
| Max. speed | 45,000mm/min | ||||
| Max. cutting speed | 35,000mm/min | ||||
| Spindle power | 9.6KW HSD air cooling -Italy | ||||
| Auto tool changer | linear type with tool chank | ||||
| Spindle speed | 24,000rpm | ||||
| Inverter power | 11kw Inovance | ||||
| Drive motors | YASKAWA servo motor | ||||
| Working voltage | AC380V/50-60Hz, 3-phase | ||||
| Command code | G code | ||||
| Computer interface | USB 2.0 | ||||
| Table | vacuum table with 4kw pump | ||||
| software free | Alphacam | ||||
| controller | syntec 6M | ||||
| pop up pins | x axis | ||||
| y axis | |||||
Machine Detail:
