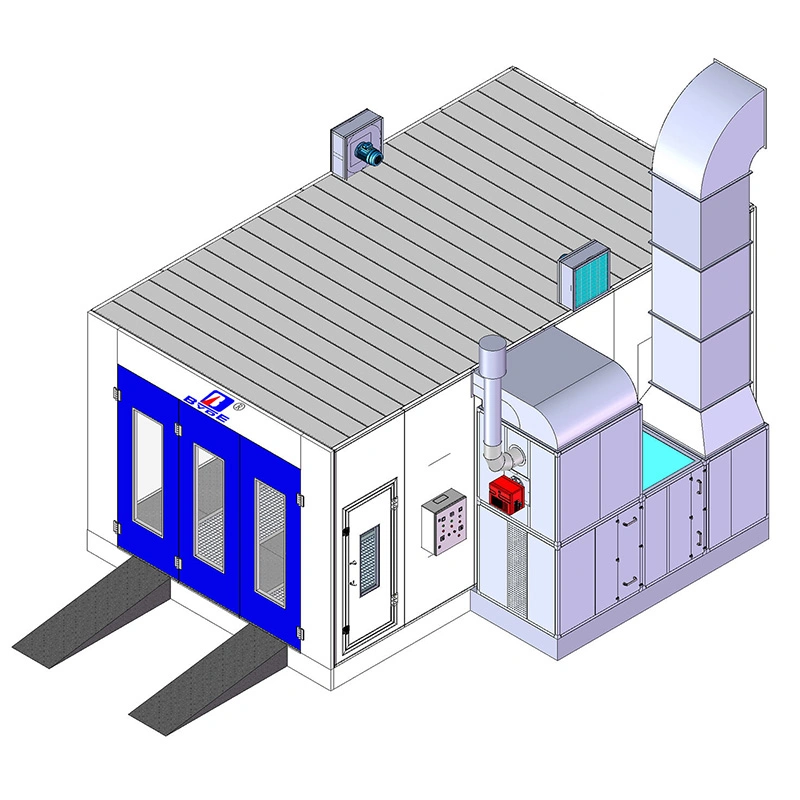

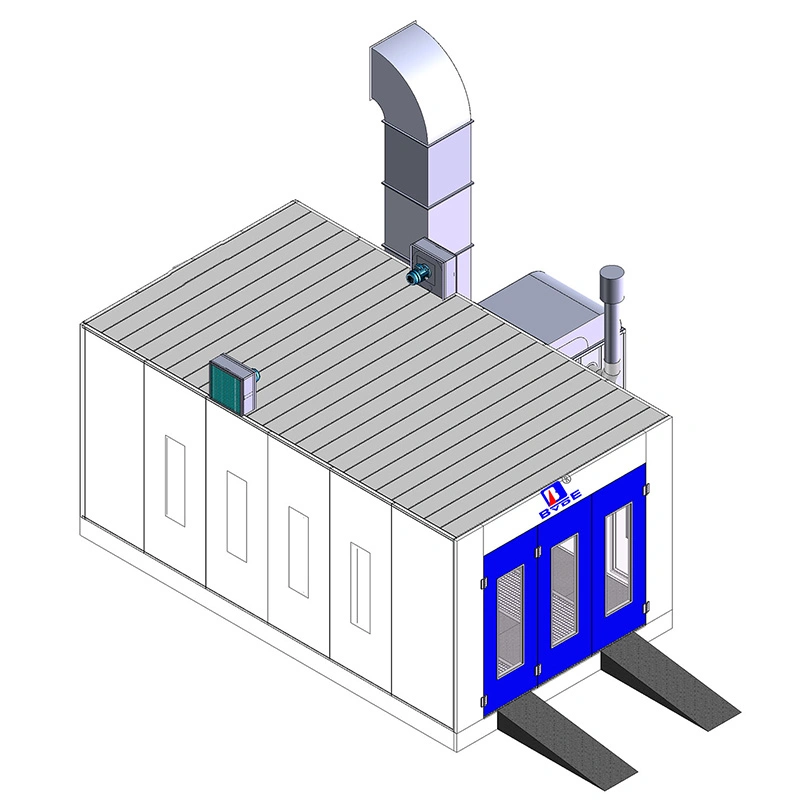

Water-Based Paint Spray Booth
This paint booth is specially designed for water-based paint spray booths, water-soluble paint booths, and water-soluble paint booths. It has a special mouthpiece to accelerate the evaporation of water-soluble paint and accelerate the curing and drying of the paint booth.
| Outside size: | 7000 x 5350 x 3400 mm (L x W x H) | Door size: | 3020 x 2600 mm (W x H) | |
| Inside size: | 6900 x 3900 x 2700 mm (L x W x H) | Gross power: | 48.5(KW) | |
| Foundation and floor (galvanized) | Foundation | Full galvanized metal foundation, full grids, The biggest features for it are beautiful, durable and better force bearing | ||
| Surface area of floor filter | 26 M² (area of grids) | |||
| Galvanized metal basement | 300mm height, the ventilation effect is better than traditional spray booth | |||
| Drive-in ramps | 3 big drive-in ramps, each size: 2000x1000mm | |||
| Wall and door (rock wool) | Wallboard and roof panel | High quality double construction fireproof insulation rock wool panel, thickness: 50mm | ||
| 3-folded entrance door with safety glass window | 1set, size: 3020x2600 mm (W x H), size is bigger than traditional spray booth | |||
| Operator's door with safety glass window | 800x2000mm(W x H) | |||
| Lighting | Ceiling lighting | 8units, each 4 x 36W, total 1152W | ||
| Side lighting | 8units, each 2 x 36W, total 576W | |||
| Brightness | ≥1200 LUX | |||
| Filtration system | Pre-filters | G3 grade pocket filter system, filtration effect is much better | ||
| Ceiling filter | EU5 grade high efficient filter | |||
| Bottom filter and exhaust filter | Fibre glass paint-stop filter, Activated carbon filter | |||
| Ventilation system | Inlet fan | 2 x 4KW, 380V, 50HZ, CE, Double intake centrifugal fan | ||
| Outlet fan | 1 x 5.5KW, 380V, 50HZ, CE, Double intake centrifugal fan | |||
| Water-based paint motor fan | 2 x 1.5KW, 380V, 50HZ, CE, Turbo fan | |||
| Total fan capacity | 26,000m³/h | |||
| Air flow speed in cabin | 0.27m/s in empty booth, 0.28 - 0.35m/s in loaded booth | |||
| Heating system | Temperature | Set temperature 60ºС, max baking temperature is 80°C | ||
| Heating Type | 10 units infrared heaters, total 30KW | |||
| Heating time | 4-6minutes (from20 to 60ºС) under baking status | |||
| Control system | Control system | Standard direct start control system | ||
| Function | Painting, infrared baking, lighting, emergency stop switch, failure indication, differential pressure gauge | |||
Booth Body:EPS or Rock wool panel
Wall panel :sandwich style,thickness 50mm,polystyrene or cock wool available as required .
Panels are tongue and groove connected .Roof panel is galvanized metal sheets,hot-isolated panel as optional .
Door:new style is without aluminum side,reinforcement inside,while old style is with aluminum side.
Personnel door with pressure lock automatically opens when inside pressure exceeds.
There is auto-return device on top of personnel door of some models .
Basement is made of steel ,galvanized ,easy assembled .
2rows of grids and 3rows of vein boards, or full grids,good bearing ,antisepsis and reliable .
Wall panel :sandwich style,thickness 50mm,polystyrene or cock wool available as required .
Panels are tongue and groove connected .Roof panel is galvanized metal sheets,hot-isolated panel as optional .
Door:new style is without aluminum side,reinforcement inside,while old style is with aluminum side.
Personnel door with pressure lock automatically opens when inside pressure exceeds.
There is auto-return device on top of personnel door of some models .
Basement is made of steel ,galvanized ,easy assembled .
2rows of grids and 3rows of vein boards, or full grids,good bearing ,antisepsis and reliable .
Intake and exhaust Cabin
Centrifugal fan,big vane and motor separated ,avoiding accidents resulting from short circuit .Centrifugal fan produces great air flow ,is easy to clean dust on vane,and is up to CE standard. In take fan is a must for all models ,while exhaust fan is collocated for some models.
European flange style ducts.Exhaust ducts are must for all models while intake ducts are collocated for some models.Manual or electrical damper to adjust air flow .
Spraying-baking transform damper ,air controlled .
Intake and exhaust ducts are separated ,avoiding interaction
Centrifugal fan,big vane and motor separated ,avoiding accidents resulting from short circuit .Centrifugal fan produces great air flow ,is easy to clean dust on vane,and is up to CE standard. In take fan is a must for all models ,while exhaust fan is collocated for some models.
European flange style ducts.Exhaust ducts are must for all models while intake ducts are collocated for some models.Manual or electrical damper to adjust air flow .
Spraying-baking transform damper ,air controlled .
Intake and exhaust ducts are separated ,avoiding interaction
Water paint device :Water paint device as optional .Two rows or three rows of nozzles installed on each side of top 45°,
Or 2 extra nozzles device at the rear corners Traditional booths can be changed into water paint boos
in this way.
Or 2 extra nozzles device at the rear corners Traditional booths can be changed into water paint boos
in this way.
